System Description

Preformed alkali-resistant impregnated glass fibre meshes

Compressive strength≥45 MPa.

G - Mesh

G-MESH 400 , G-MESH 490 and G-MESH 1000 are preformed meshes in alkali-resistant GFRP ( Glass Fiber Reinforced Polymer ) composite material for the consolidation and structural reinforcement of existing brick, tuff and irregular stone walls.

-Weight 400 g/m2 . Mesh 80×120 mm.
-Rolls H 2 m, L 20 m equal to 40 m2 .

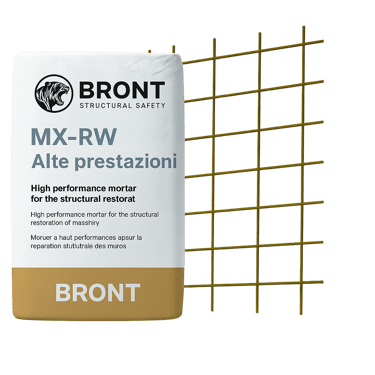

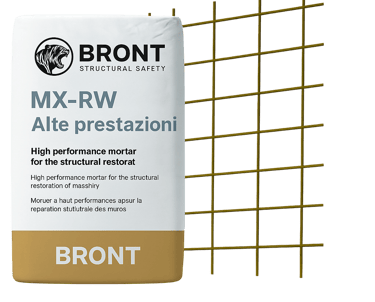

MX-RW High Performance

• Reinforcement of existing walls made of solid bricks, tuff and irregular stone.

• Static and seismic improvement and adaptation of existing load-bearing masonry buildings.

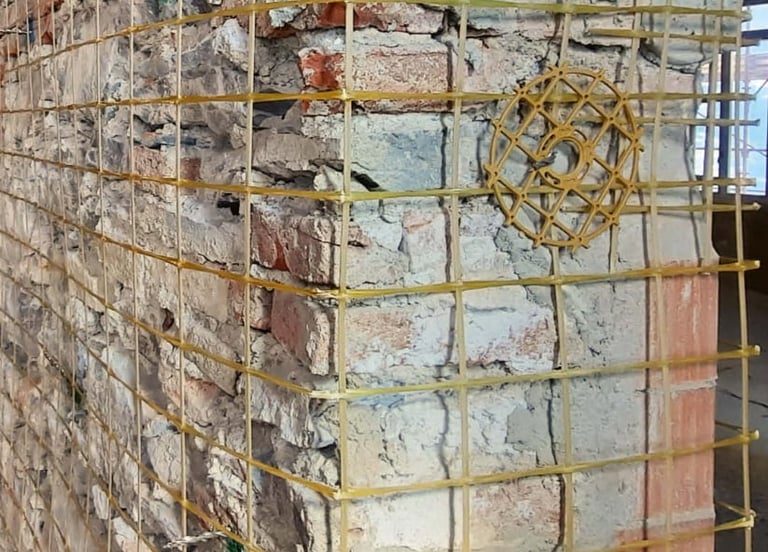

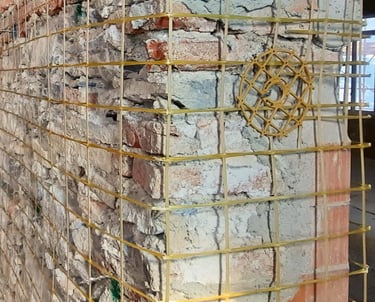

• Realization of the CRM system consisting of the alkali-resistant glass fibre mesh G-MESH 400, G-MESH 490 and G-MESH 1000 and the structural plaster mortars.

• Structural plaster mesh compliant with European guideline EAD 340392-00-0104 "CRM (Composite Reinforced Mortar) systems for strengthening concrete and masonry structures"

FIELDS OF APPLICATION

HELICAL CONNECTOR

Stainless steel bar for connection systems. Available in lengths: 200, 400, 600, 1000 mm. To be used with the HELICAL GUIDE

G-MESH CONNECTOR

Preformed connection element in A/R fiberglass.
Available in lengths: 200, 400, 600, 1000 mm for width 100. To be used with a grouting anchor or MX-Joint

G-MESH CORNER

Weight 490 g/m2 , mesh 80 x 80 mm. Size: H 2 m, L 30 cm per side.
Necessary for forming internal and external corners.

G-MESH HANDKERCHIEF

Mesh 35 x 35 mm. Size: external diameter 170 mm – internal diameter 30 mm. To be applied in correspondence with the CONNECTORS .
