System Description

FRCM reinforcement system for concrete

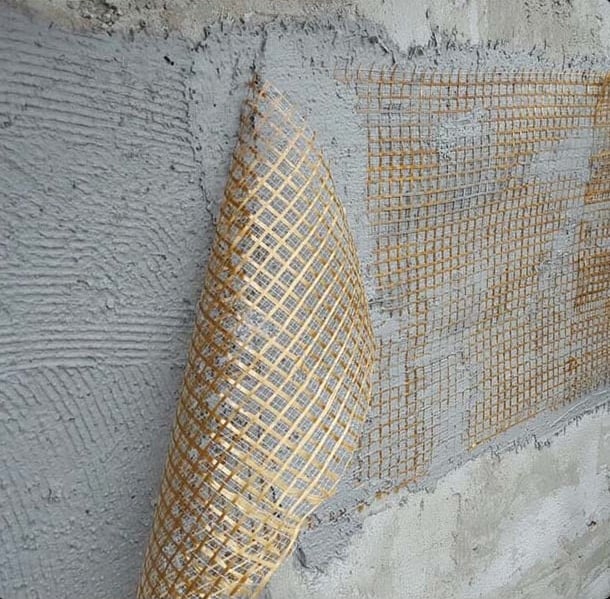

A cement-based inorganic fiber matrix designed to work specifically with PBO-MESH 1 on concrete structures. It ensures effective stress transfer from the structural element to the reinforcement mesh.

PBO - MESH 1

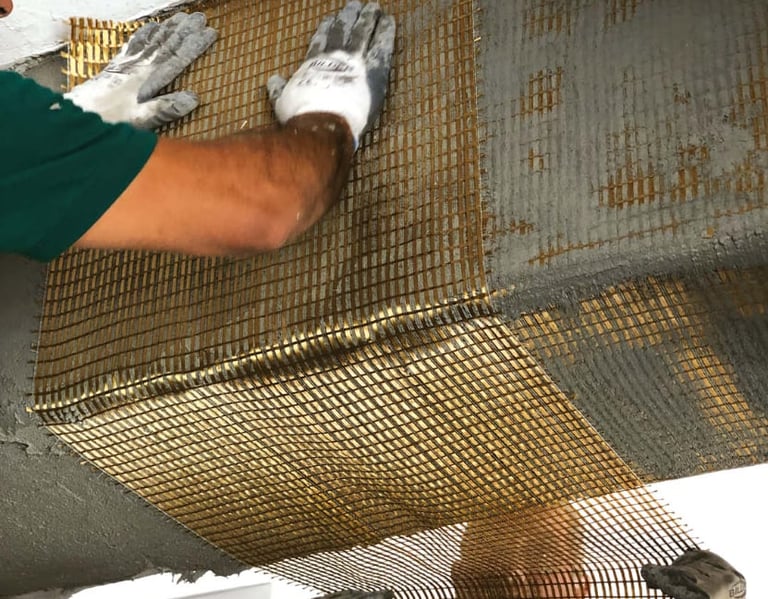

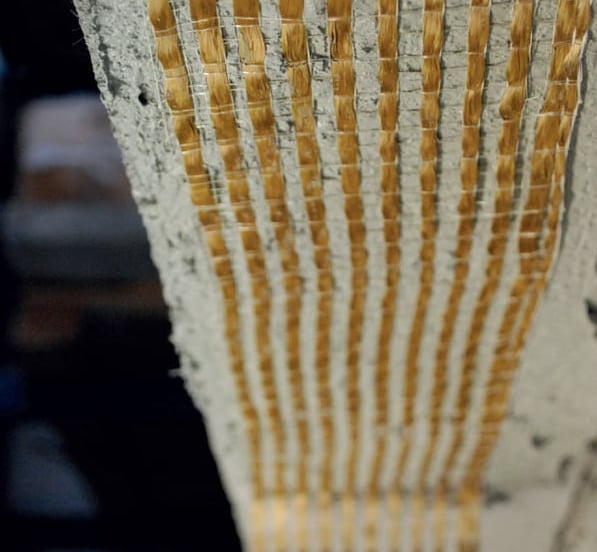

Unidirectional mesh made with 105 g/m² PBO fiber, featuring thermoplastic glass fibers woven across the transverse direction of the PBO.

– 10 cm height, 30-meter roll
– 25 cm height, 15-meter roll

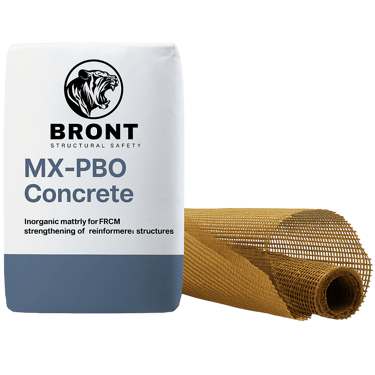

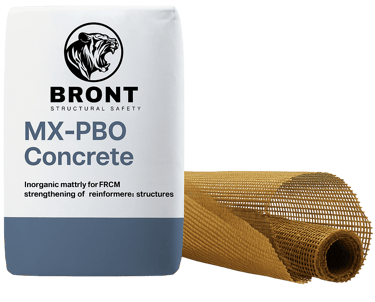

MX-PBO Concrete

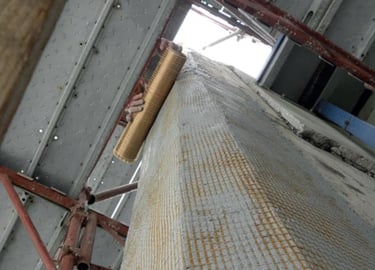

  • Enhancement of both static and seismic performance in reinforced concrete (RC) buildings

  • Upgrading the structural behavior of RC infrastructures under static and seismic loads

  • Flexural strengthening of beams and joists in RC floor systems

  • Combined compressive and flexural reinforcement of concrete columns

  • Shear strengthening of beams, columns, joints, and RC shear walls

  • Confinement reinforcement for RC columns

  • Increasing the ductility and deformation capacity of reinforced concrete components

FIELDS OF APPLICATION

(Best for large structural elements that need high reinforcement)

System Description

FRCM reinforcement system for concrete

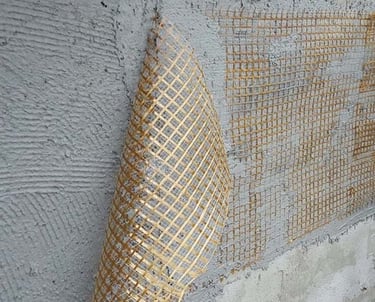

Cement-based inorganic fibre matrix ideal for allowing optimal transfer of stresses from the structural element to the PBO-MESH 44 mesh

PBO - MESH 44

Unidirectional mesh with 44 g/m 2 in PBO fiber, presence of thermoplastic glass fiber in the direction transversal to that of the PBO fibers.

H 25 cm, 50 m reel

MX-PBO Concrete

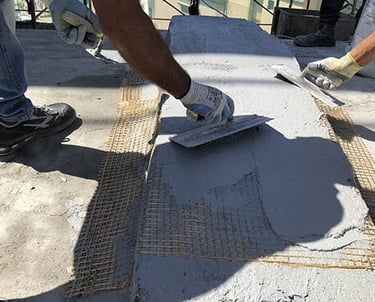

  • Adaptation and improvement of the static and seismic behaviour of masonry buildings

  • Structural reinforcement of masonry piers and floor bands of masonry buildings

  • Structural reinforcement of masonry cornerstones and floor kerbs.

  • Structural reinforcement of masonry top curbs.

  • Structural reinforcement of masonry arches, vaults and domes.

  • Structural reinforcement of masonry infrastructures.

  • Anti-overturning devices and structural reinforcement of external infill walls in reinforced concrete frame buildings.

FIELDS OF APPLICATION

(Good for general structural reinforcement where you need flexibility but still high strength)

System Description

FRCM reinforcement system for concrete

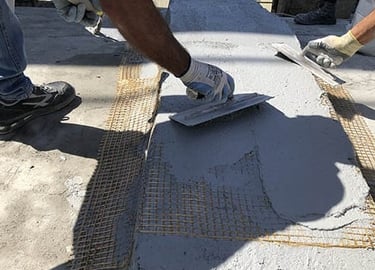

Cement-based inorganic fibre matrix specific for the PBO-MESH 22/22 network.

PBO - MESH 22

Bidirectional mesh with 44 g/m 2 PBO fiber, equally distributed in warp and weft.

H 100 cm, 15 m reel.

MX-PBO Mansonry

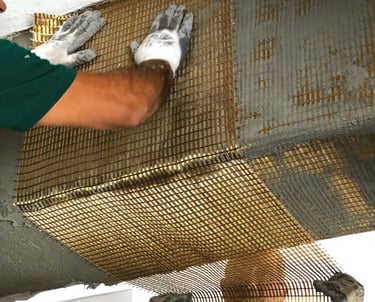

  • Adaptation and improvement of the static and seismic behavior of RC buildings

  • Structural reinforcement of masonry piers and floor bands of masonry buildings.

  • Structural reinforcement of masonry cornerstones and floor kerbs.

  • Structural reinforcement of masonry arches, vaults and domes.

  • Structural reinforcement of masonry infrastructures.

  • Improving the ductility of masonry buildings.

  • Anti-overturning devices and structural reinforcement of external infill walls in reinforced concrete frame buildings.

FIELDS OF APPLICATION

(Best for non-structural cracks, surface strengthening)

System Description

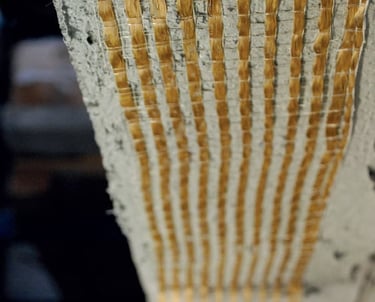

PBO fiber bow connector for FRCM system.


Inorganic matrix for impregnation and application of PBO-JOINT staple connector

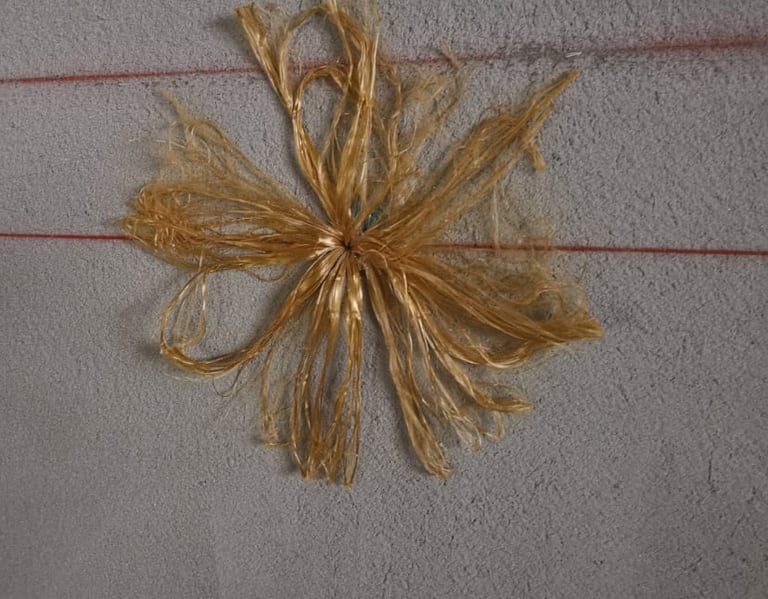

PBO - JOINT

PBO Fiber Bow Connector

– Ø 3 mm, 10 m dispenser

– Ø 6 mm, 10 m dispenser.

MX - JOINT
  • Adaptation and improvement of the static and anti-seismic behavior of masonry and reinforced concrete buildings.

  • Structural reinforcement of masonry piers and floor bands of masonry buildings with the presence of the FRCM system on one side of the facing only.

  • Structural reinforcement of masonry piers and floor bands of masonry buildings with the presence of the FRCM system applied on multi-faceted and/or rubble masonry.

  • Structural reinforcement of masonry corner joints and floor coverings.

  • Structural reinforcement of masonry top curbs.

  • Structural reinforcement of masonry arches, vaults and domes.

  • Structural reinforcement of masonry infrastructures.

  • Structural reinforcement of reinforced concrete infrastructures.

  • Shear reinforcement of reinforced concrete beams.

  • Compressive-flexural strengthening of reinforced concrete pillars.

  • Anti-tipping systems for internal partitions and external infills.

FIELDS OF APPLICATION

(the PBO Joint is what turns the dry mesh into an effective reinforcement layer.)
